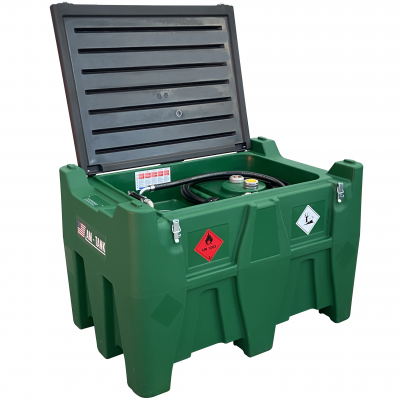

Portable 116-gallon tanks manufactured in high density linear roto-molded polyethylene for the safe and reliable transport and supply of Diesel only. AM-TANK 116 offers a lightweight, robust, and portable tank solution giving users the ultimate convenience to refuel their fleet remotely on-site. Assembled and ready to use, this innovative tank can be easily loaded on the back of the pick-up truck and quickly plugged to the truck battery.

Tanks are equipped with:

  • 2” filling plug equipped with three-effects (pressure/de-pressure/overturning) air vent device
  • Integrated forklift pockets (to lift when full)
  • Integrated handles (to lift when empty)
  • Integrated recesses for securing with ratchet lashing straps during transport
  • Integrated covering lid to provide protection against bad weather conditions, UV rays and equipped with lockable draw latches
  • Suction net filter to stop and separate impurities
  • Fuel level indicator

Fuel Transfer Unit:

  • 12 GPM Diesel DC Transfer Pump (12V, 300 Watt, 22 Amp, Duty Cycle: 30 minutes on/off, 2900 RPM, ON/OFF switch, IP55 rated)
  • 13 ft. Cable with clamps
  • 13 ft. of flexible dispensing hose

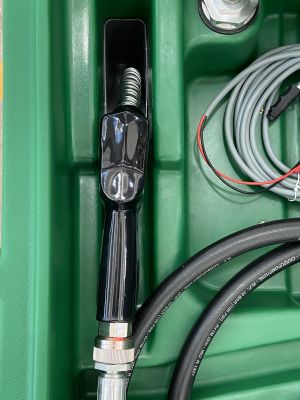

  • A60 Auto-nozzle

• Nominal capacity: 116 gal [440 lt]
• Tank total length: 47,2 in [120 cm]
• Tank total width: 31,5 in [80 cm]
• Tank total height: 30,9 in [78,5 cm]
• Tank total weight**: 114 lbs [52 kg]
**(including fuel unit and accessories)
