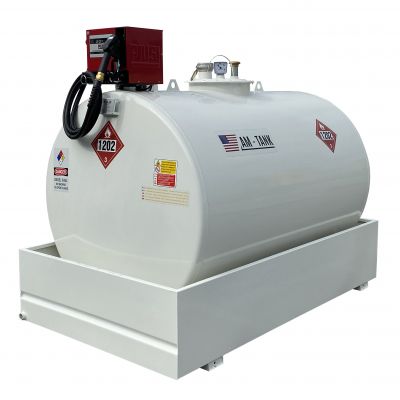

Skid-mounted horizontal cylindrical Diesel tanks manufactured made of carbon steel quality S235JR, watertight electro-welded (submerged arc welding process), provided with anti-roll supports, primed with a rust preventing layer and finished with a layer of white paint. Tanks are delivered pressure-tested and ready-to-use (plug-and-play).

Tanks are equipped with:

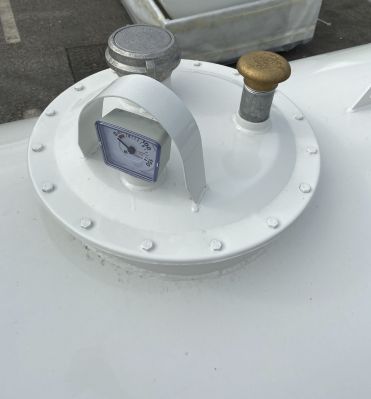

  • Ø 16” (400 mm) manhole complete with oil gasket and tight bolted cover.
  • 3” lockable filling quick cap.
  • Mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’s geometric capacity.
  • Vent device with flame arrestor mesh.
  • Mechanical float operated tank contents gauge with planetary gear, adjustable scale in cm.
  • Tank drainage point provided with a safety cap for routine maintenance and cleaning.
  • Suction point equipped with check valve, strainer and ball valve.
  • Equipotential grounding point.
  • Containment dike complete with lifting plates, grounding connection point, drain plug for routine maintenance / cleaning and n° 4 housings suitable for fixing the uprights of the roof system.

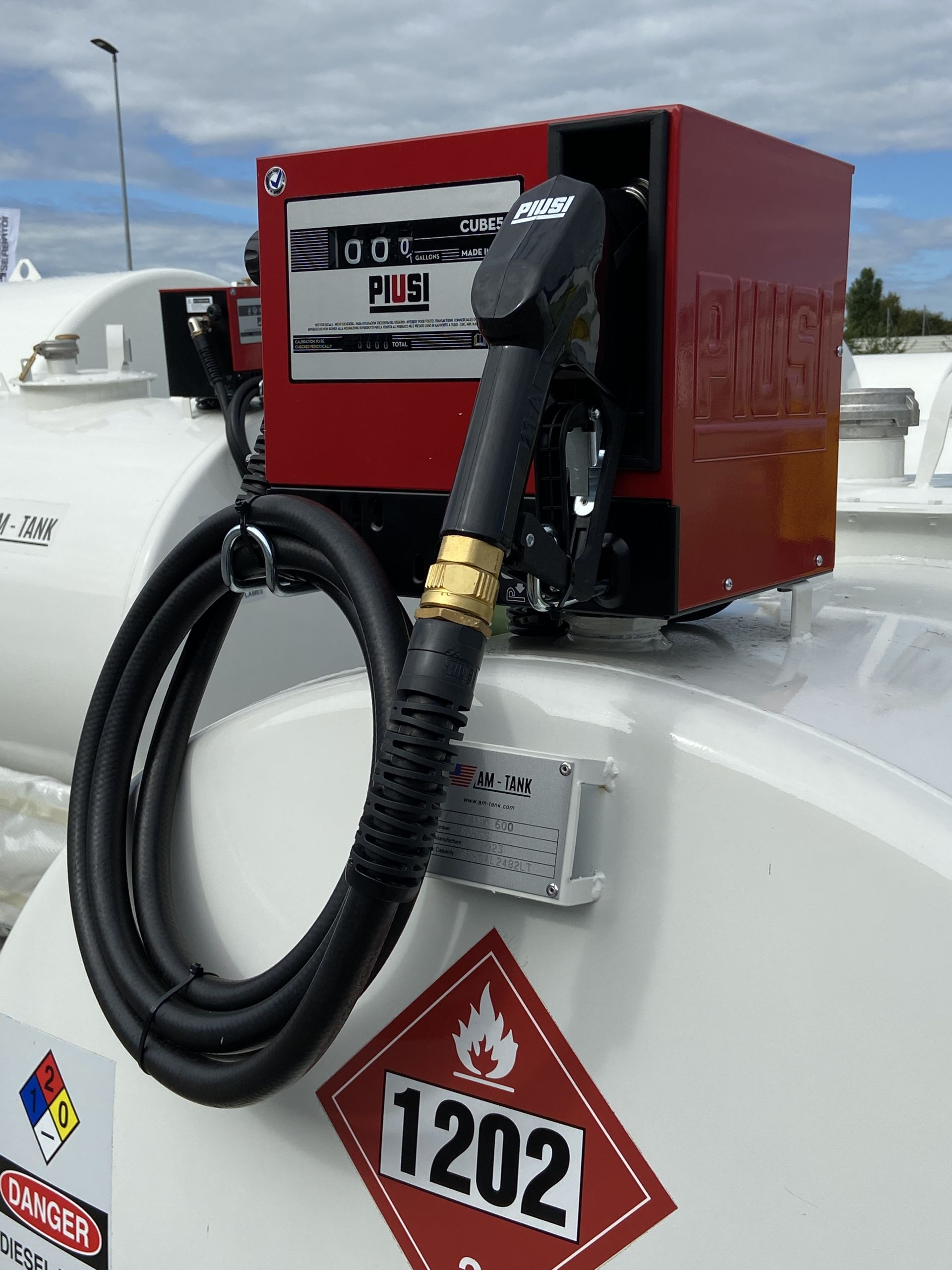

Fuel Transfer Unit:

  • 15 GPM Diesel Transfer Pump (120V/60Hz, 650 Watt, 7.5 Amp,
  • Duty Cycle: 20 minutes on/off, 3450 RPM, 48.5 lbs, IP55 rated).
  • 3-Digit Mechanical Meter (in gal).
  • 13 ft. of dispensing hose.
  • A60 Auto-nozzle.

• Nominal capacity: 655 gal [2479 lt]
• Tank total length (including containment dike): 7,20 ft [220 cm]
• Tank total width (including containment dike): 4,17 ft [127 cm]
• Tank total height (including fuel transfer unit): 5,58 ft [170 cm]
• Tank total weight**: 880 lbs [400 kg]

**(including fuel unit and accessories)
