AM TANK 236 DIESEL + 26 DEF

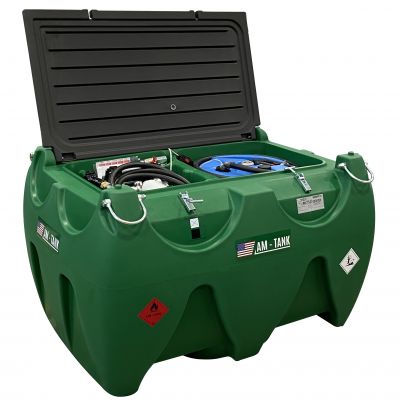

Portable 236+26-gallon tanks manufactured in high density linear roto-molded polyethylene for the safe and reliable transport and supply of Diesel and DEF. AM-TANK 236+26 offers a lightweight, robust, and portable tank solution giving users the ultimate convenience to refuel their fleet remotely on-site. Assembled and ready to use, this innovative tank can be easily loaded on the back of the pick-up truck and quickly plugged to the truck battery.

Colors available:

  • Green Tank with dark Grey lid (new style)
  • Black tank with Grey lid

Tanks are equipped with:

  • 2” filling plug equipped with three-effects (pressure/de-pressure/overturning) air vent device for both Diesel and DEF section.
  • Integrated forklift pockets (to lift when full).
  • Lifting lugs to lift from above, even when full
  • Integrated handles (to lift when empty).
  • Integrated recesses for securing with ratchet lashing straps during transport.
  • Integrated covering lid to provide protection against bad weather conditions, UV rays and equipped with lockable draw latches.
  • Suction net filter to stop and separate impurities (Diesel section only).
  • Fuel level indicators
  • DEF tank can be removed. The remaining space can be used as tool tray when DEF tank is not being utilized.

Fuel Transfer Unit DIESEL section:

  • 18 GPM Diesel DC Transfer Pump (12V, 500 Watt, 42 Amp, Duty Cycle: 30 minutes on/off, 2000 RPM, ON/OFF switch, IP55 rated).
  • 20 ft. Cable with clamps.
  • 13 ft. of flexible dispensing hose with A60 Auto-nozzle.
  • Water and particulate separator filter. Filtering capacity 30 µm.

Fuel Transfer Unit DEF section:

  • 4 GPM Submersible DEF 12V DC Transfer Pump. It is powered by the same 12 volt source as the Diesel section with a separate power plug.  No additional power cables are required.
  • 13 ft. of flexible dispensing hose.

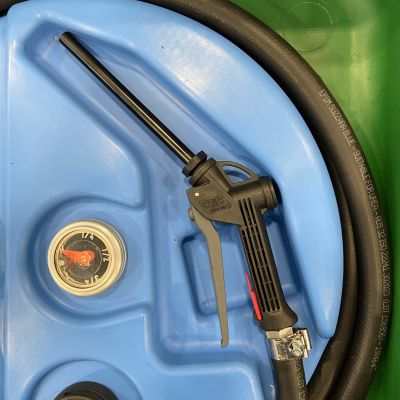

  • Manual nozzle.

Features:

  • Nominal capacity: 236 + 26 gal   [900 + 100 lt]
  • Tank total length: 60,2 in   [153 cm]
  • Tank total width: 35,8 in   [91 cm]
  • Tank total height: 45,3 in  [115 cm]
  • Tank total weight**: 247 lbs   [112 kg]

**(including fuel unit and accessories)
