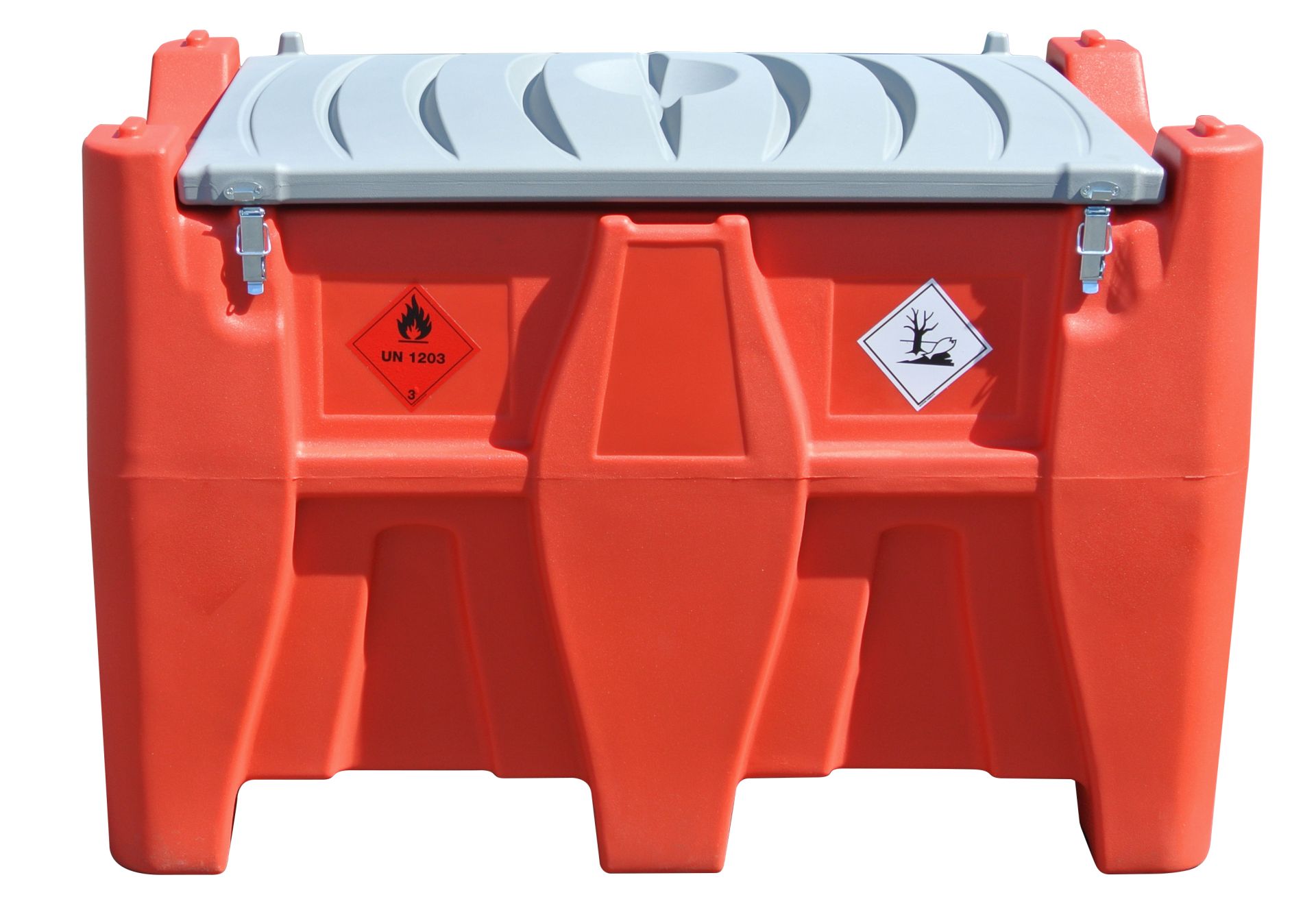

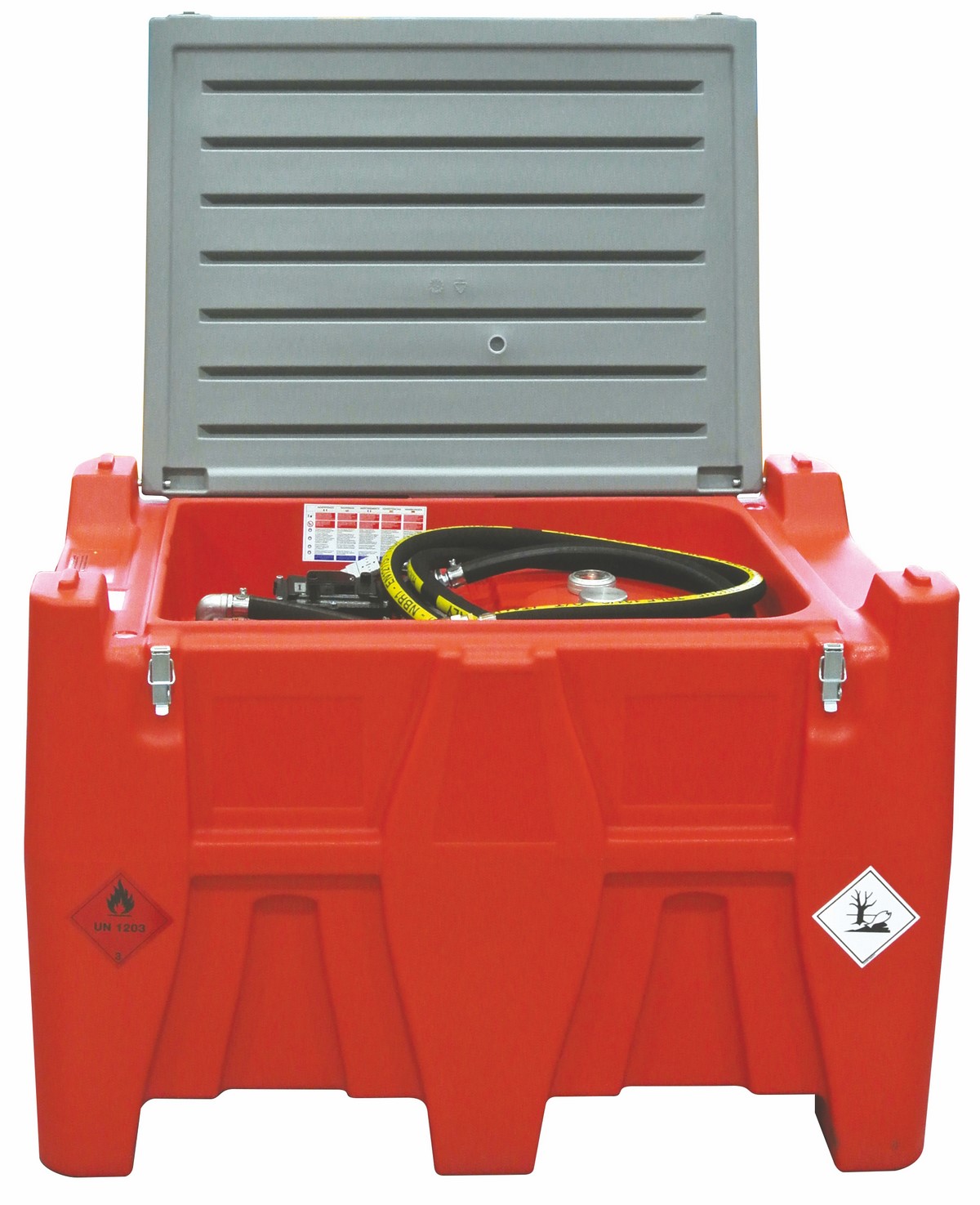

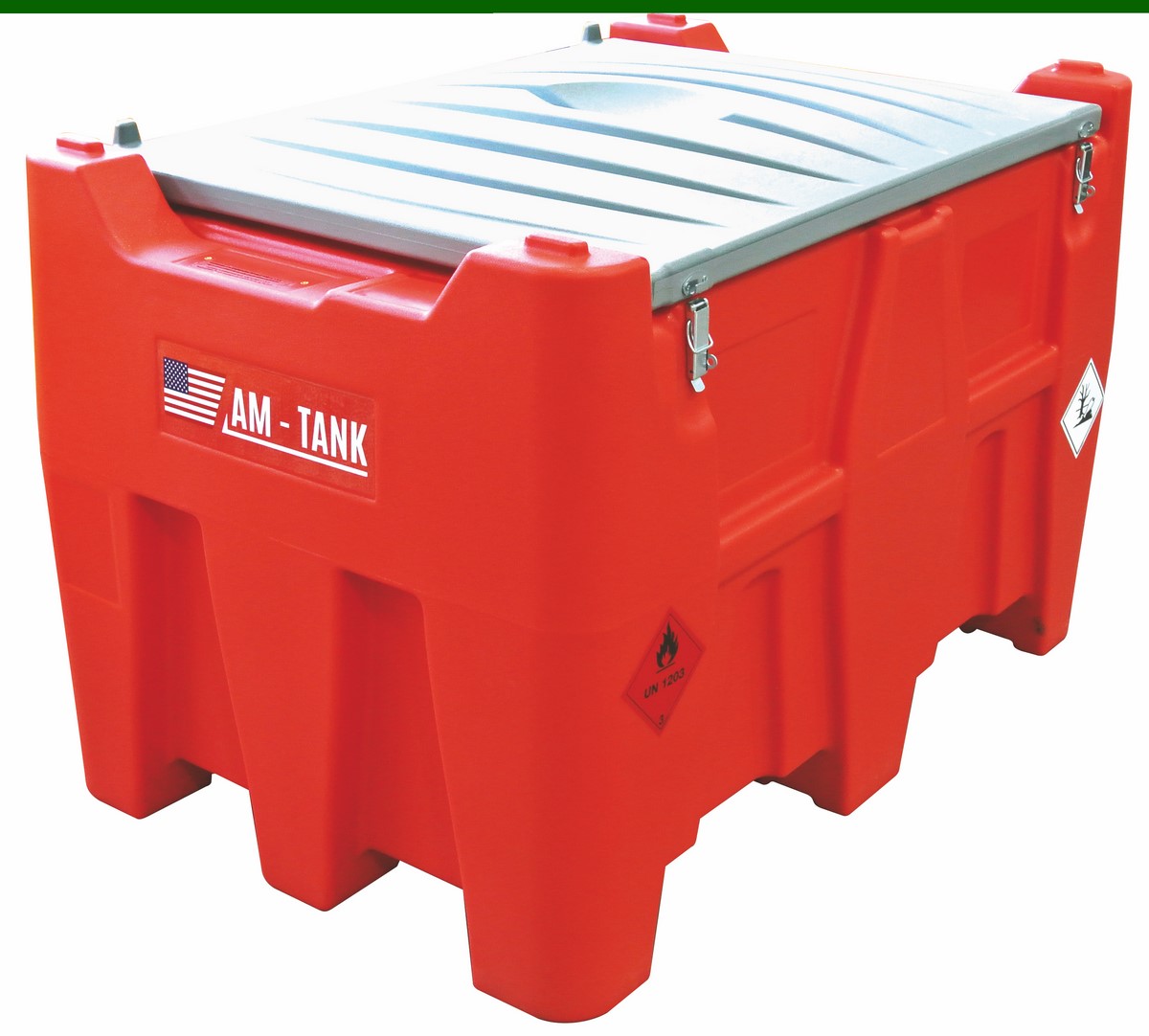

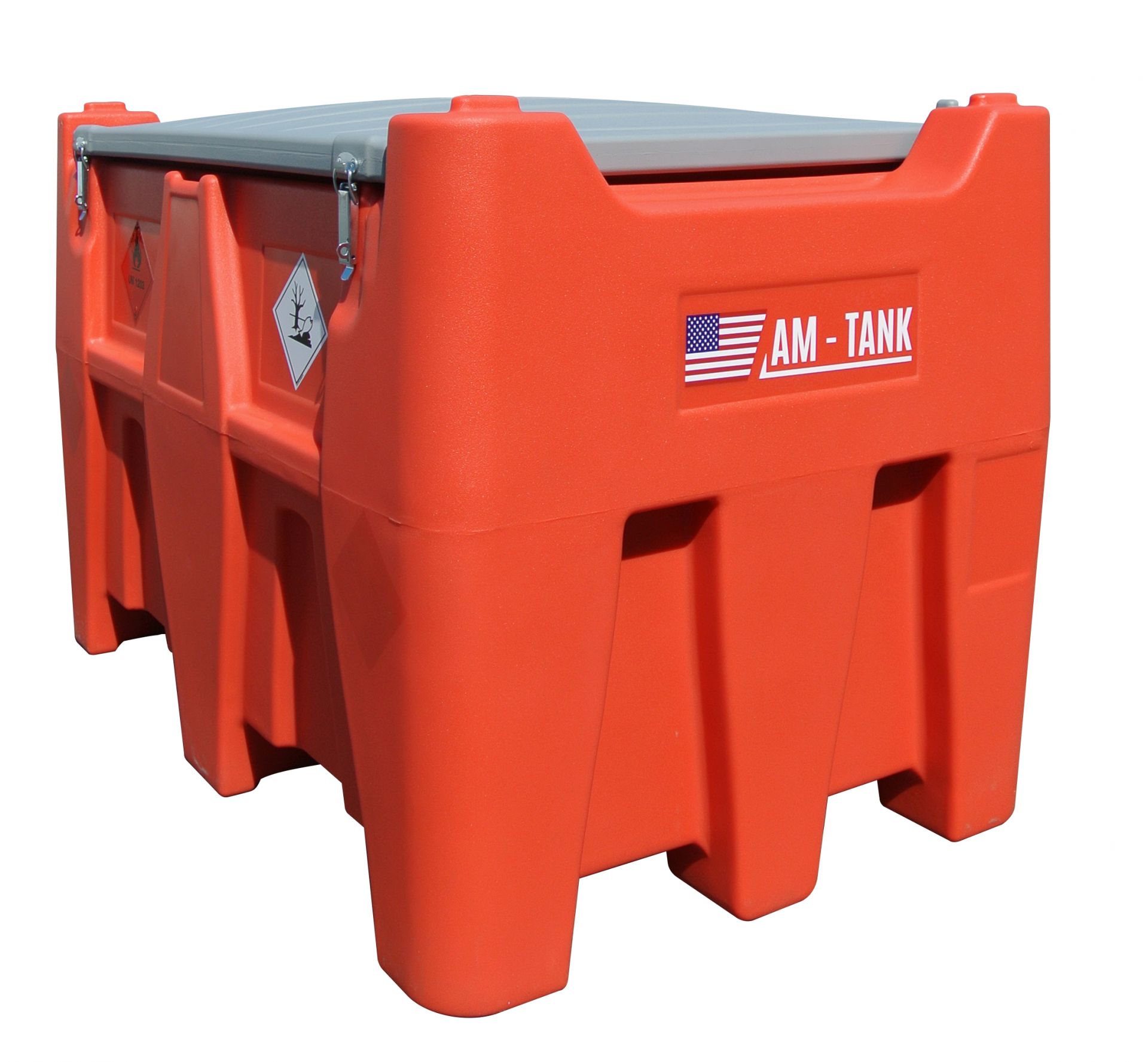

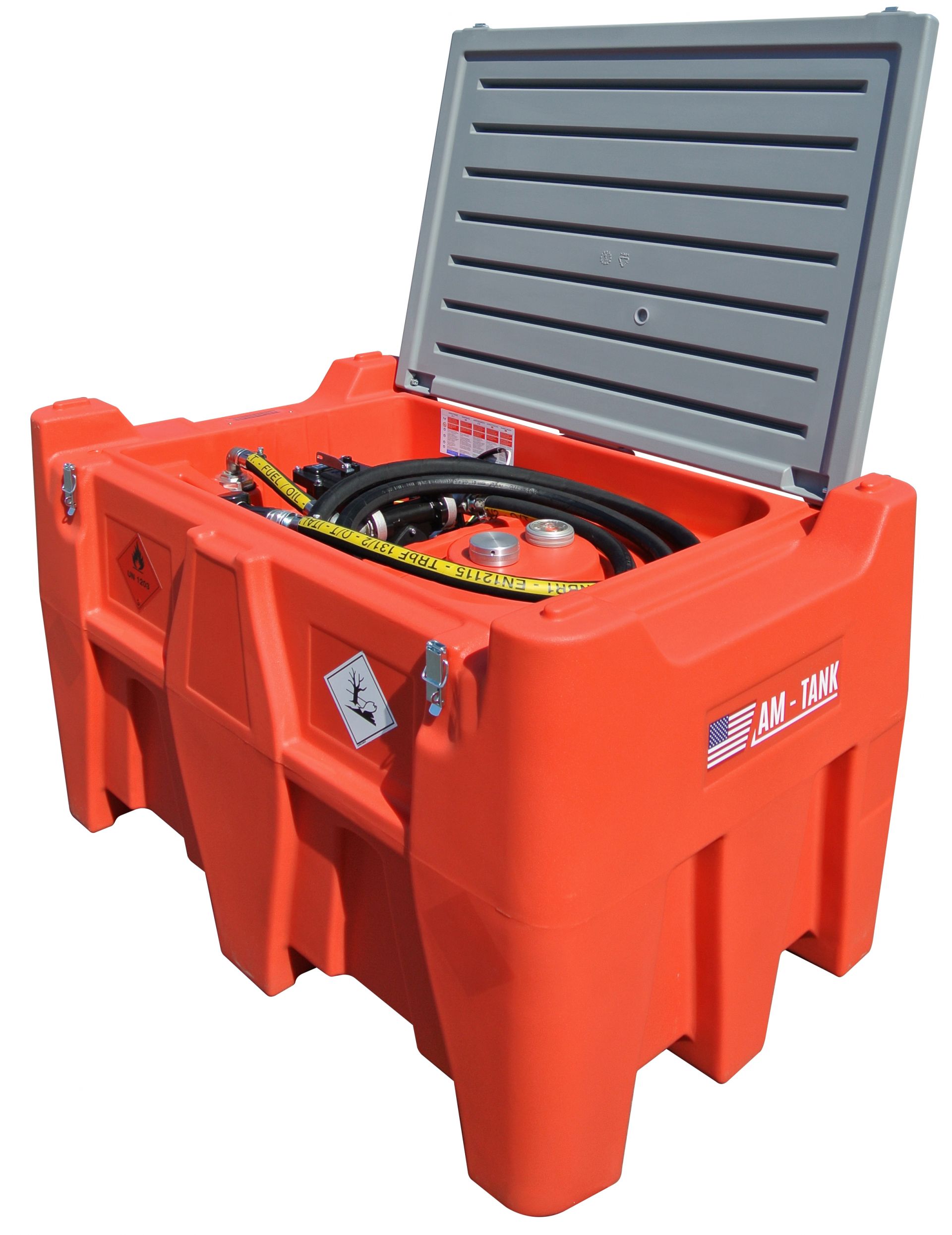

AM TANK 116 GAS

Portable 116-gallon tanks manufactured in high density linear roto-molded polyethylene for the safe and reliable transport and supply of Gasoline and Diesel. AM-TANK 116 offers a lightweight, robust, and portable tank solution giving users the ultimate convenience to refuel their fleet remotely on-site. Assembled and ready to use, this innovative tank can be easily loaded on the back of the pick-up truck and quickly plugged to the truck battery.

Colors available:

  • Black tank with Red lid (New style)
  • Red tank with Grey lid

Tanks are equipped with:

  • Rugged roto-molded new generation polyethylene giving to the tank antistaticity and semi-conductivity. These fundamental characteristics allow electrostatic charges (created by dry atmospheres, long transits or by waves of fuel when tank is half-empty) to be grounded, making all the filling and refueling operations safe and sparkless.
  • 2” filling plug equipped with three-effects (pressure/de-pressure/overturning) air vent device
  • Integrated forklift pockets (to lift when full)
  • Integrated handles (to lift when empty)
  • Integrated recesses for securing with ratchet lashing straps during transport

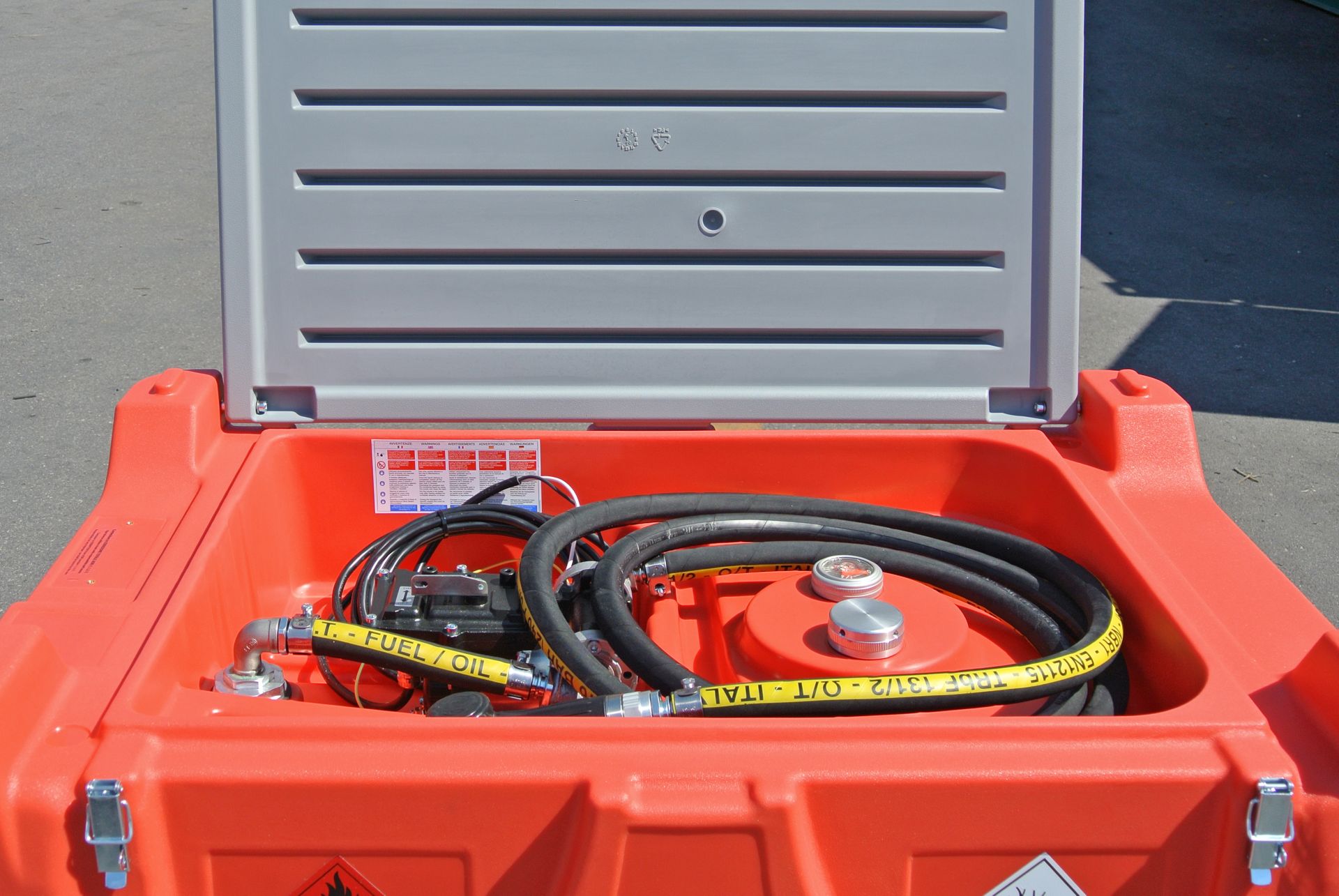

  • Integrated covering lid to provide protection against bad weather conditions, UV rays and equipped with lockable draw latches
  • Suction net filter to stop and separate impurities
  • Fuel level indicator
  • 13 ft grounding cable with clamp

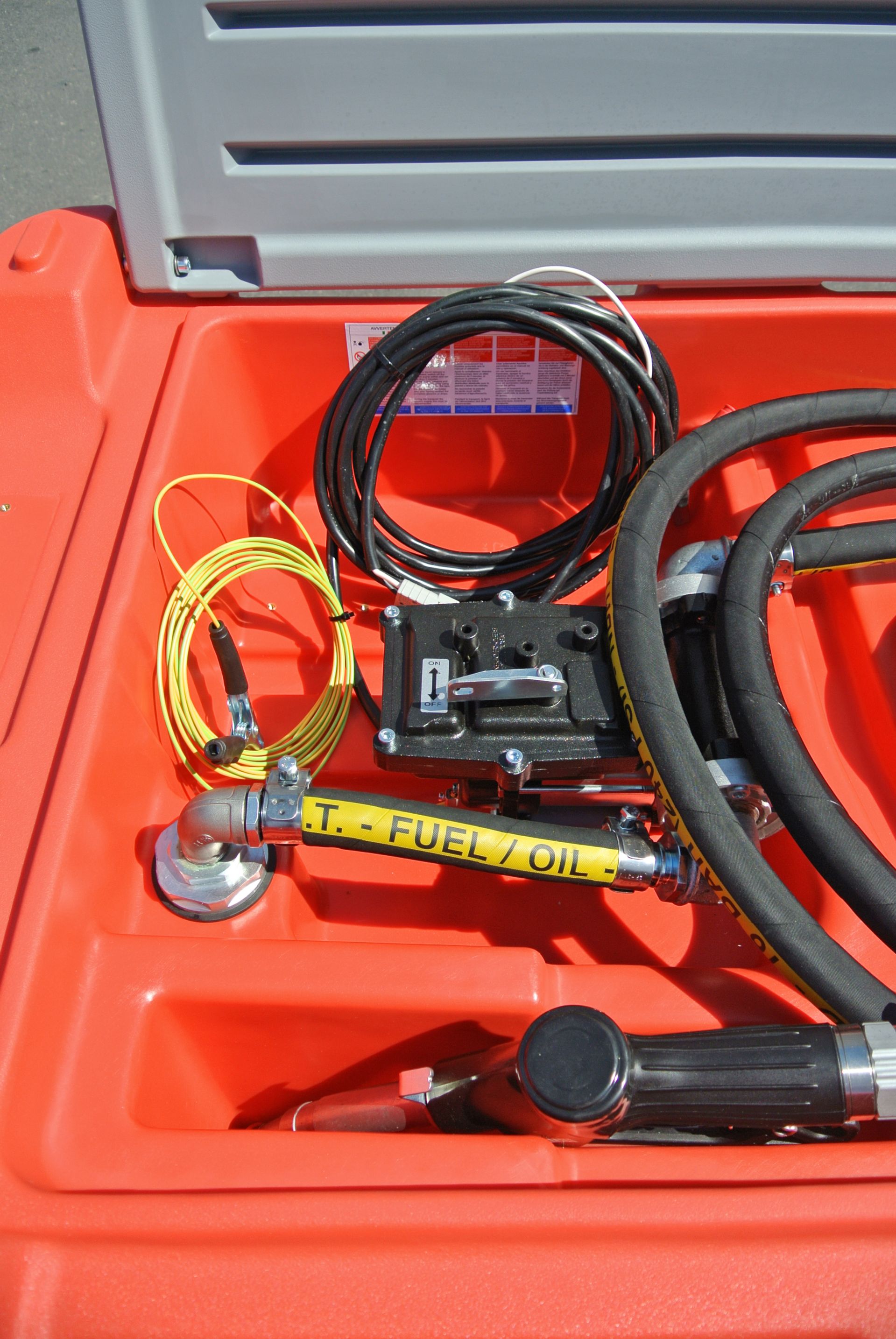

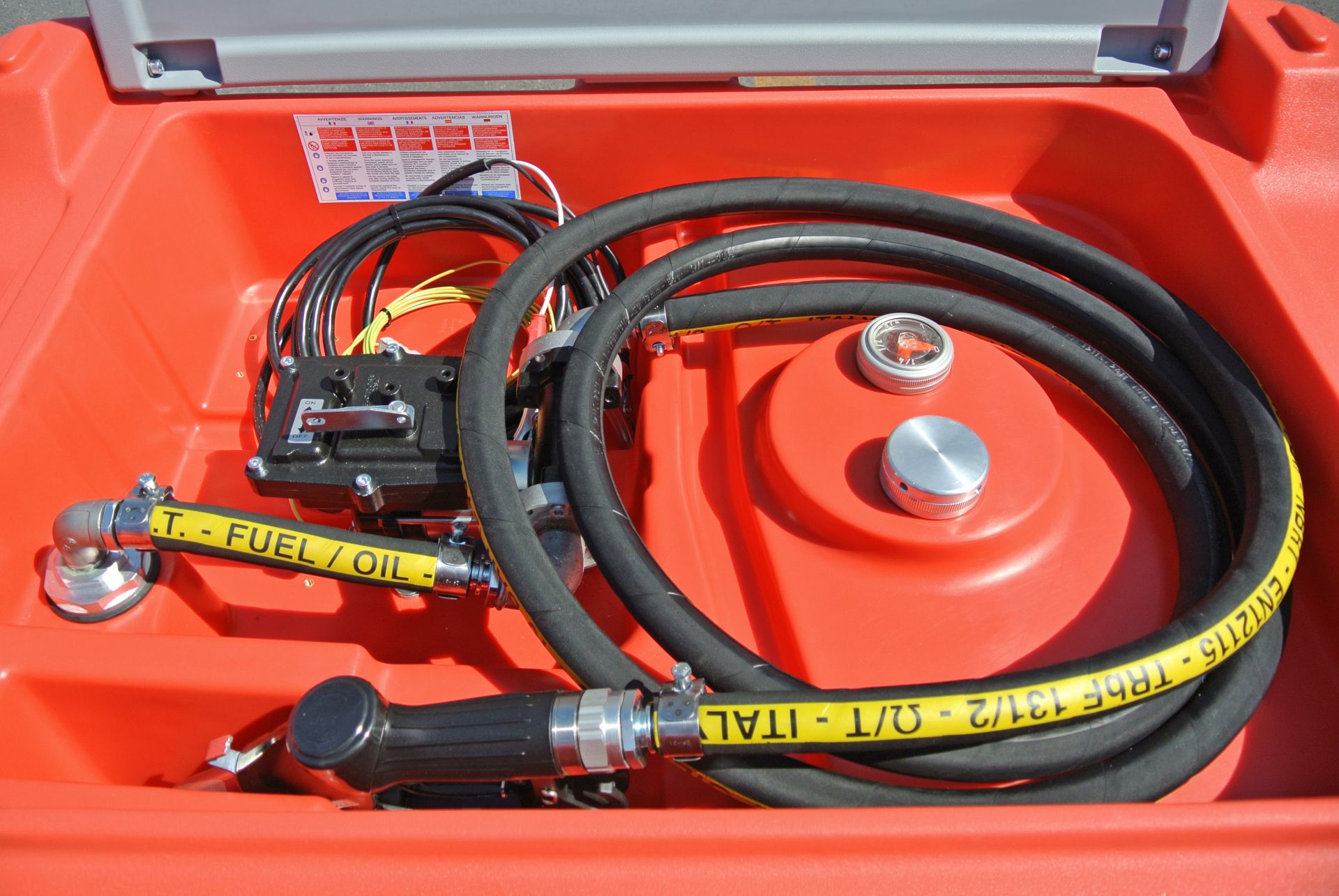

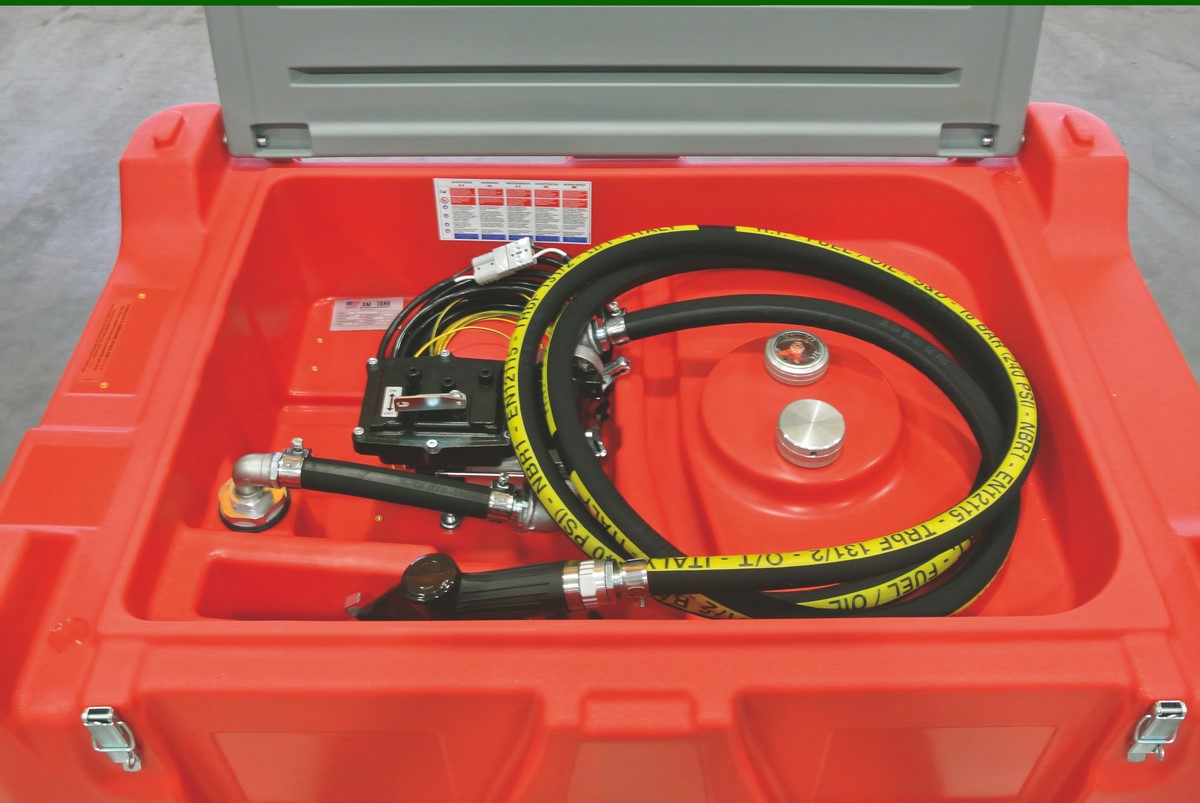

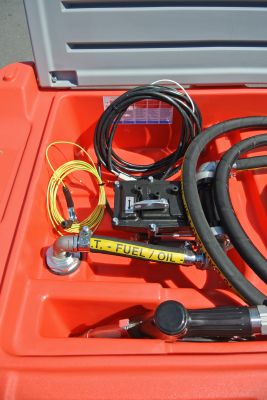

Fuel Transfer Unit:

  • EX50 cULus-listed fuel transfer pump, 12V, flow-rate: 15 gpm at-the-nozzle, duty cycle: 30 min, anti-noise filter, thermal protection, explosion-proof
  • 13 ft cable with clamps for battery connection
  • 13 ft. antistatic and flexible dispensing hose
  • UL Listed Explosion-proof Auto-nozzle

Features:

  • Nominal capacity: 116 gal [440 lt]
  • Tank total length: 47,2 in [120 cm]
  • Tank total width: 31,5 in [80 cm]
  • Tank total height: 30,9 in [78,5 cm]
  • Tank total weight**: 135 lbs [61 kg]

**(including fuel unit and accessories)



UPC  680201863309

Part Number AM-TANK 116GL GASOLINE
